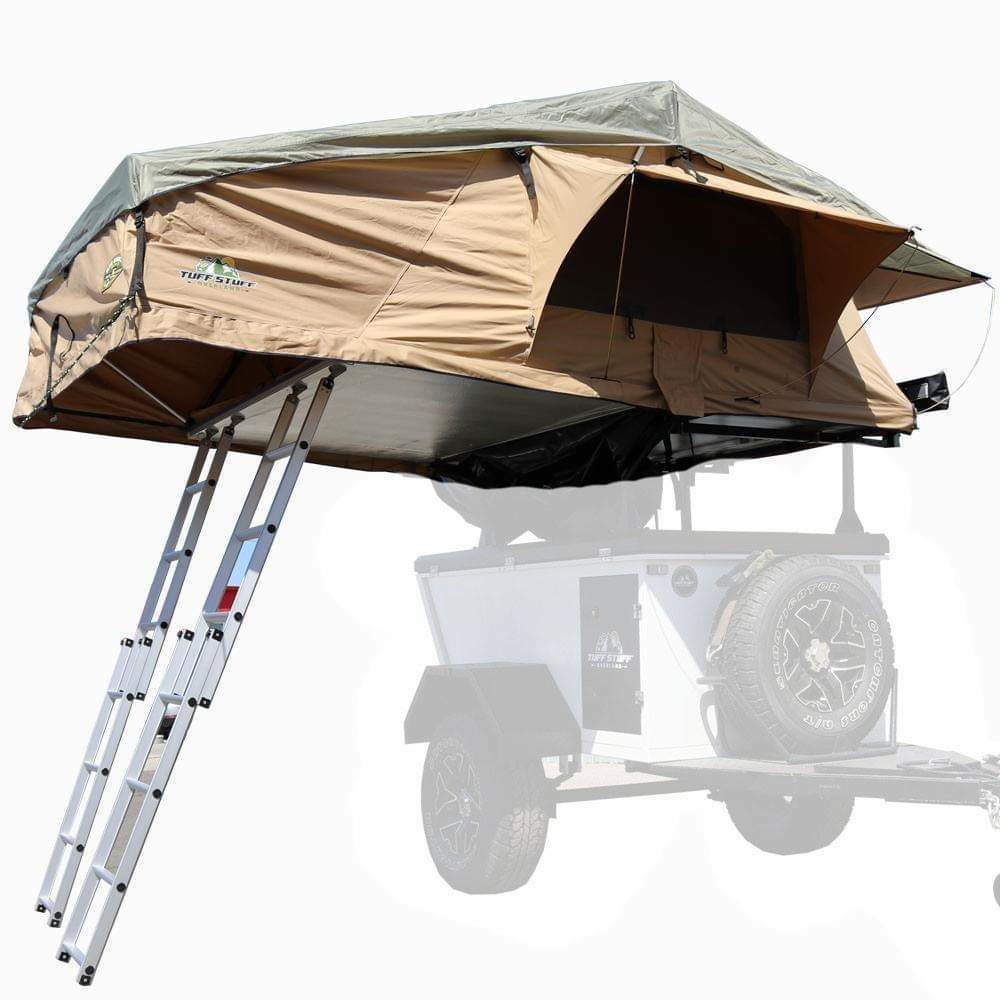

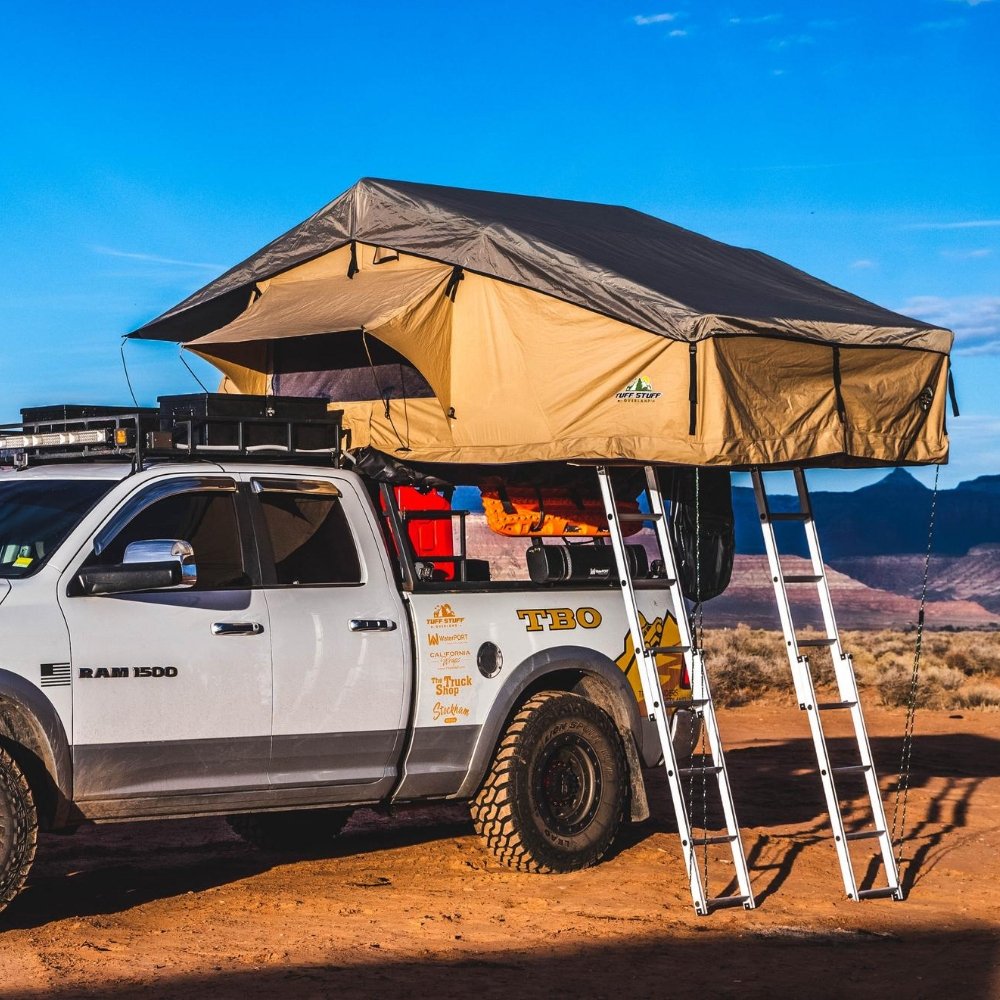

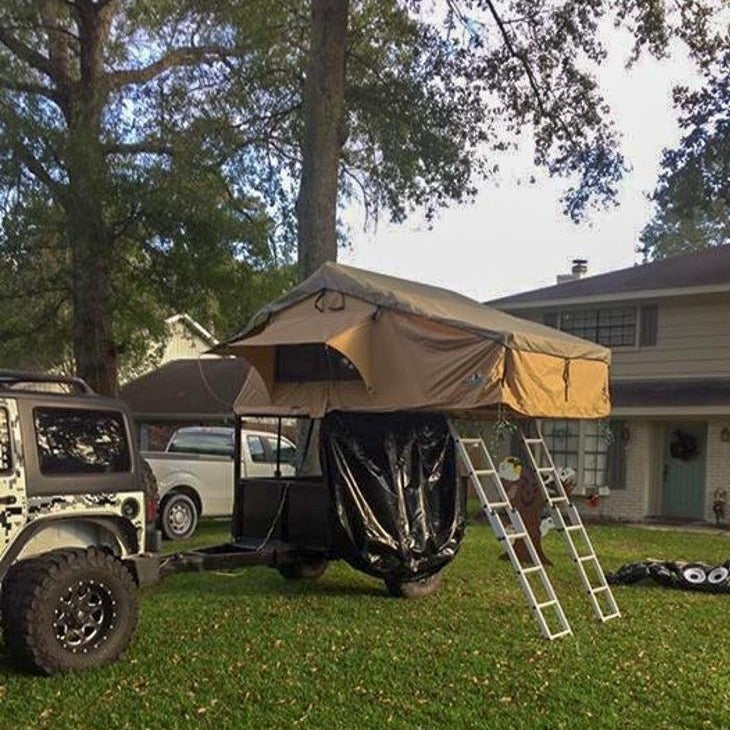

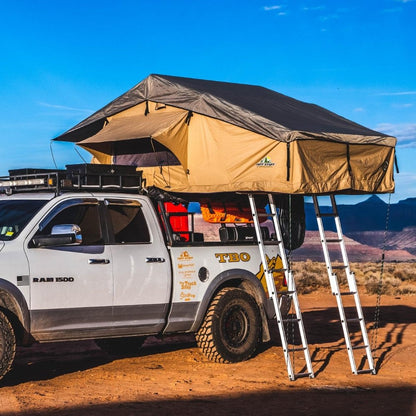

Tuff Stuff Elite Overland Roof Top Tent & Annex Room, 4-5 Person

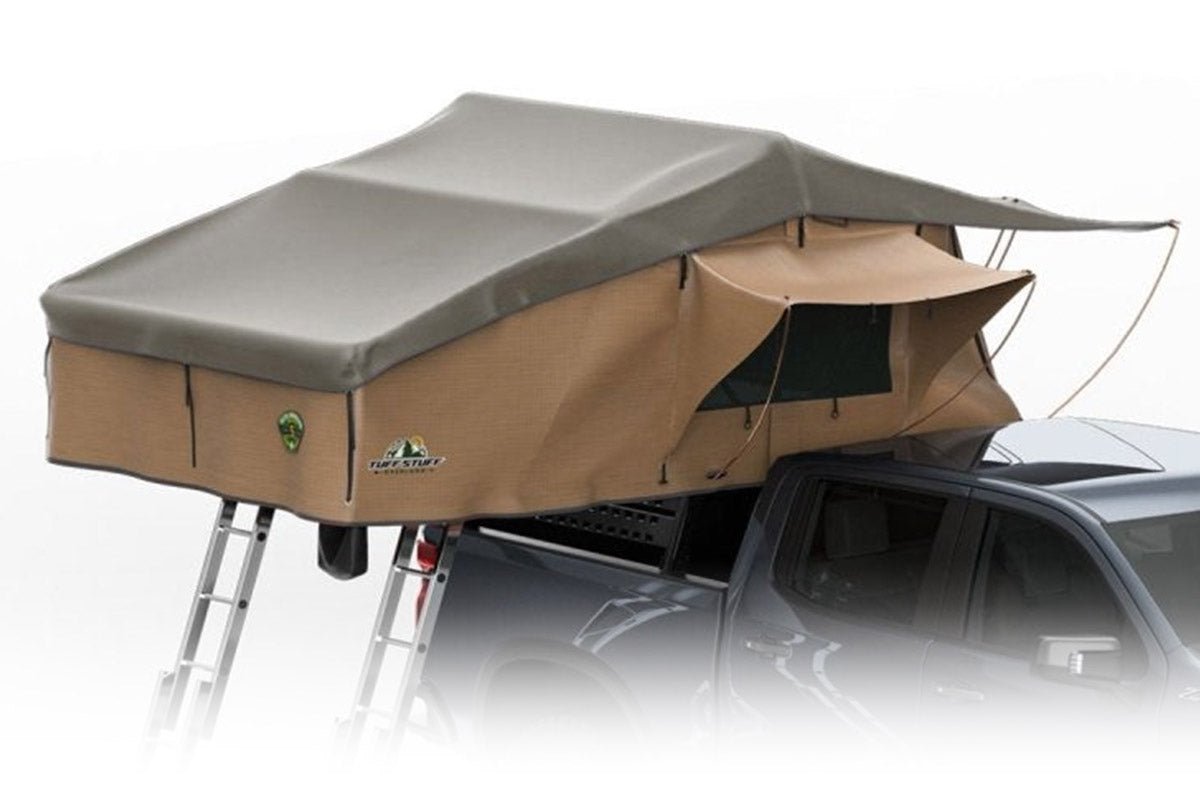

The Tuff Stuff Elite Overland Roof Top Tent is a family-size, four-season soft shell roof top tent that sleeps 4 to 5 people. A removable split wall and two separate entry doors give everyone their own space, and a removable lower annex room is included for even more living and changing room at camp.

Room for the Whole Crew

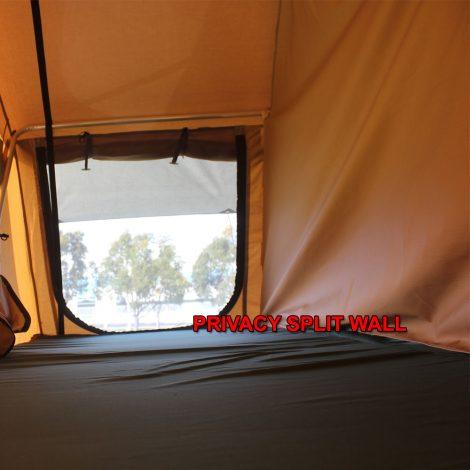

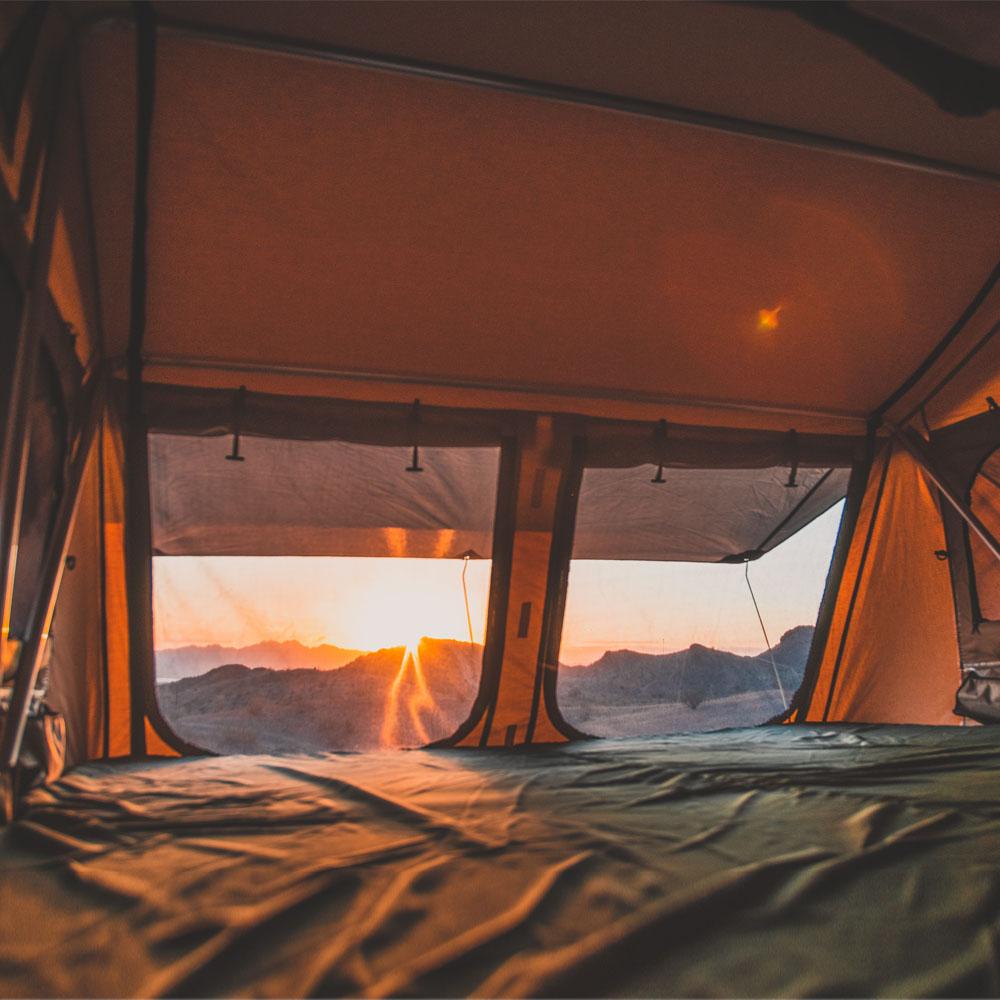

Inside, a massive 78" x 96" mattress (bigger than a California King) with a washable cover gives the whole family room to stretch out. The removable internal divider splits the tent into two separate spaces, and each side has its own sliding ladder and entry door.

Built for Four Seasons

The tent body is made from 280G polyurethane-impregnated poly-cotton rip-stop canvas with taped seams, topped by a 420D Oxford rain fly with excellent water-shedding ability. The welded 2" aluminum base is insulated between the joists to keep warm air inside, and a heavy-duty black 1000D PVC driving cover protects everything on the road.

Included Annex Room

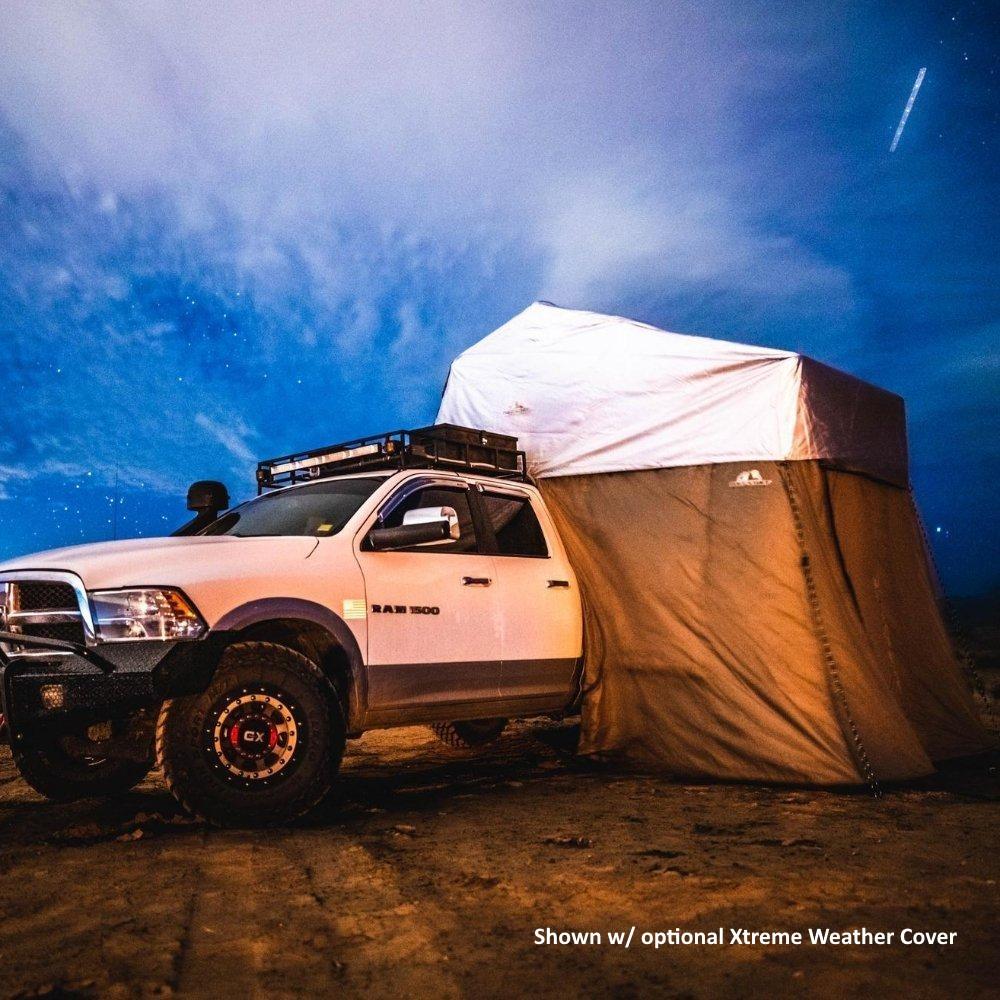

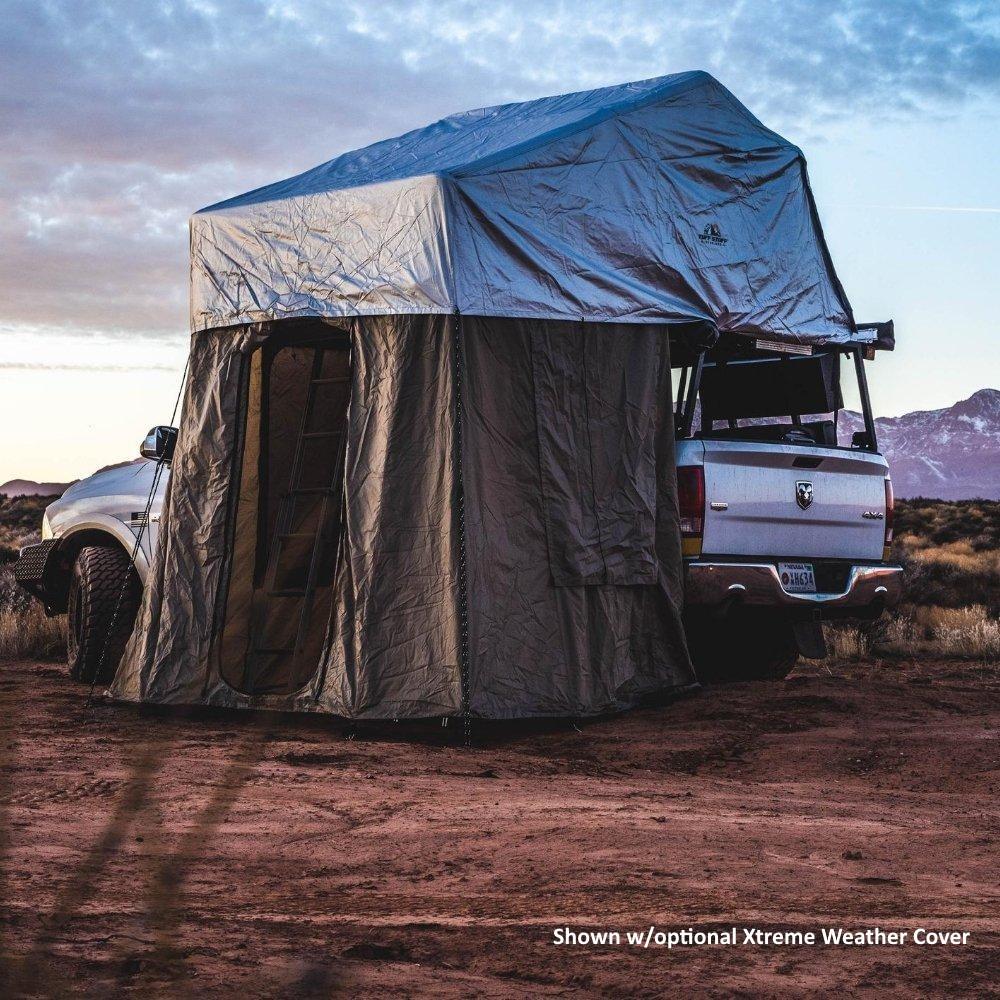

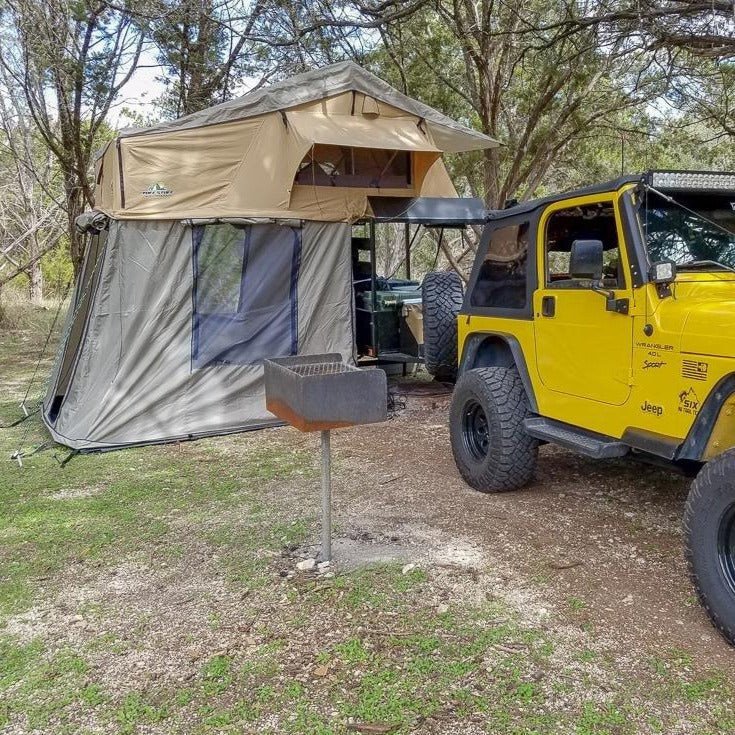

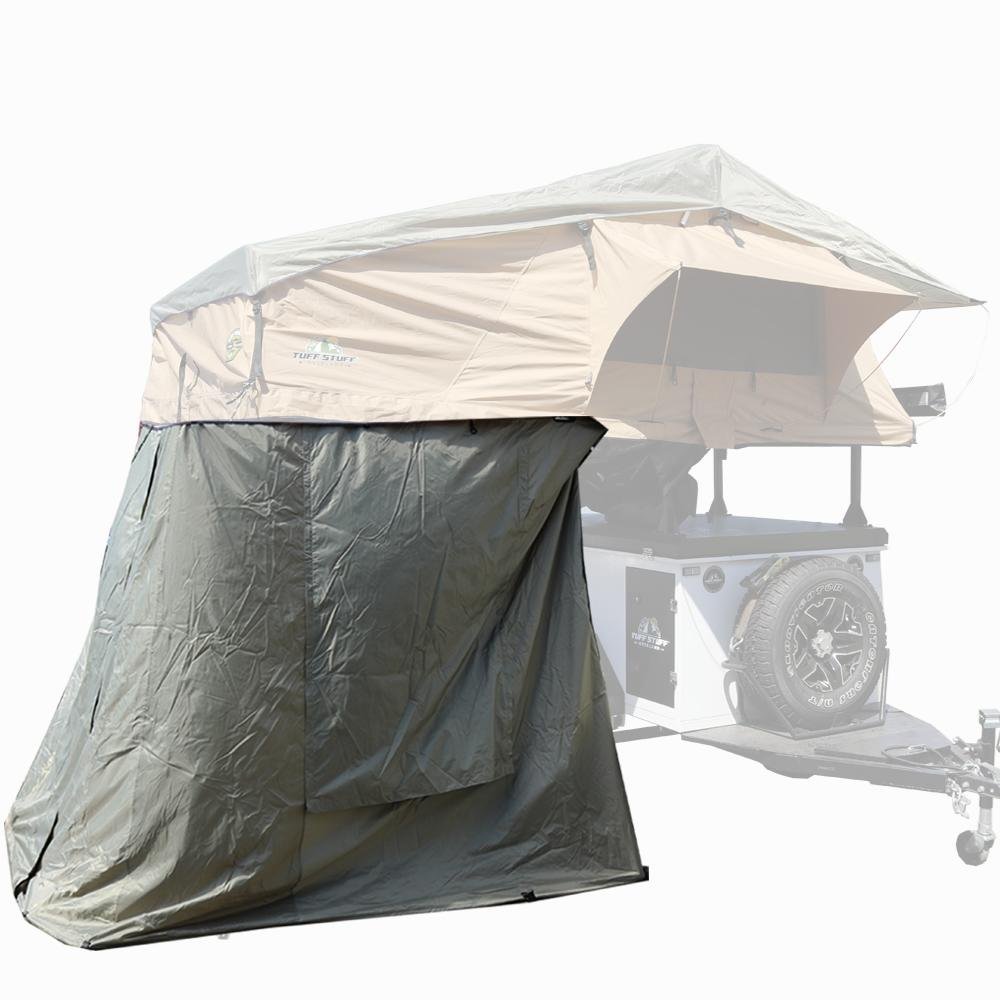

The 113" x 90" annex room zips onto the tent after installation and features 420D Oxford side walls, a 1000D PVC floor and taped seams. Use it as a changing room, an extra sleeping area for the kids, or a sheltered gear space.

Key Features

• Sleeps 4-5: four-season tent with a 78" x 96" mattress (2.75" thick, washable cover)
• Two spaces in one: removable internal divider and two separate entry doors
• Weatherproof fabrics: 280G poly-cotton windproof canvas, 420D Oxford rain fly, taped seams throughout

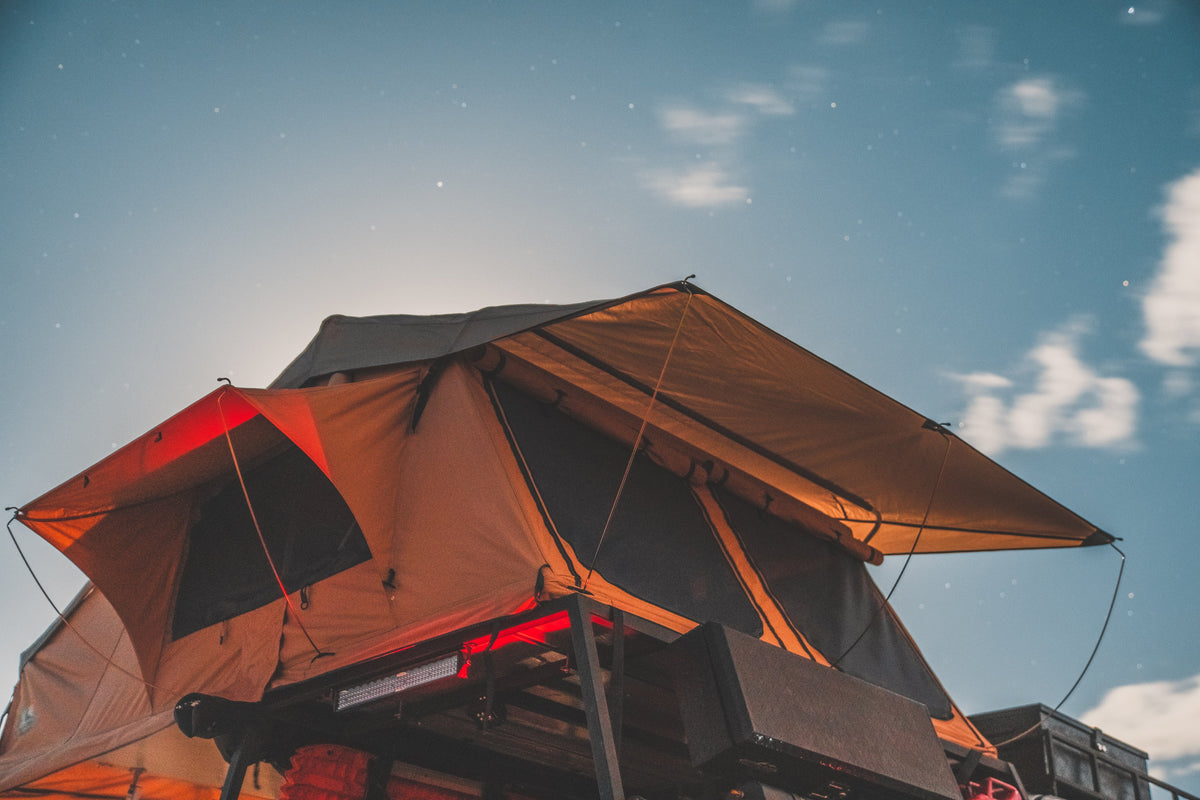

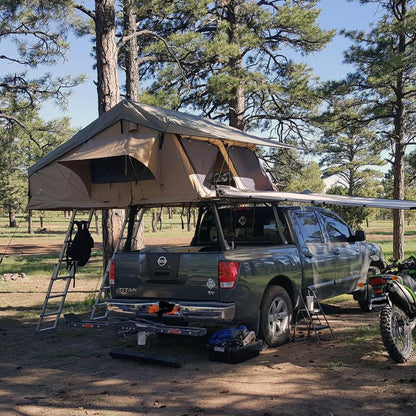

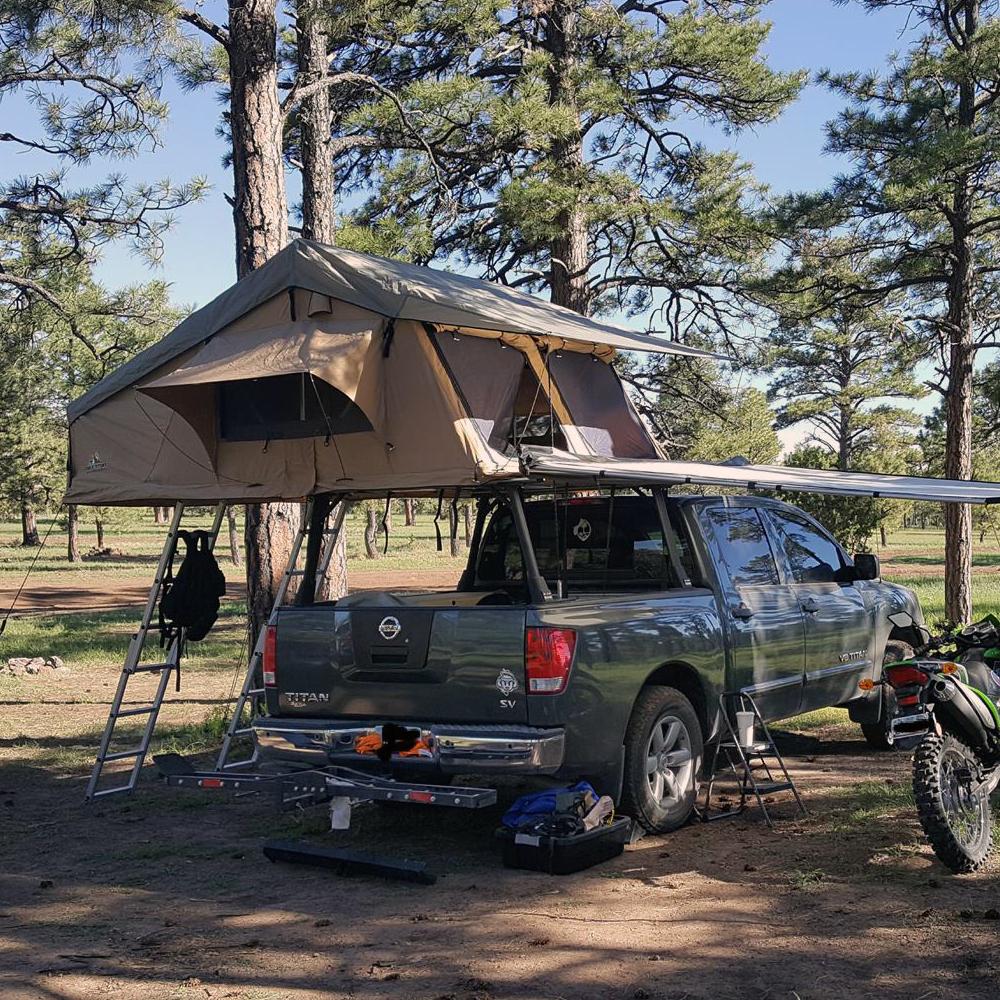

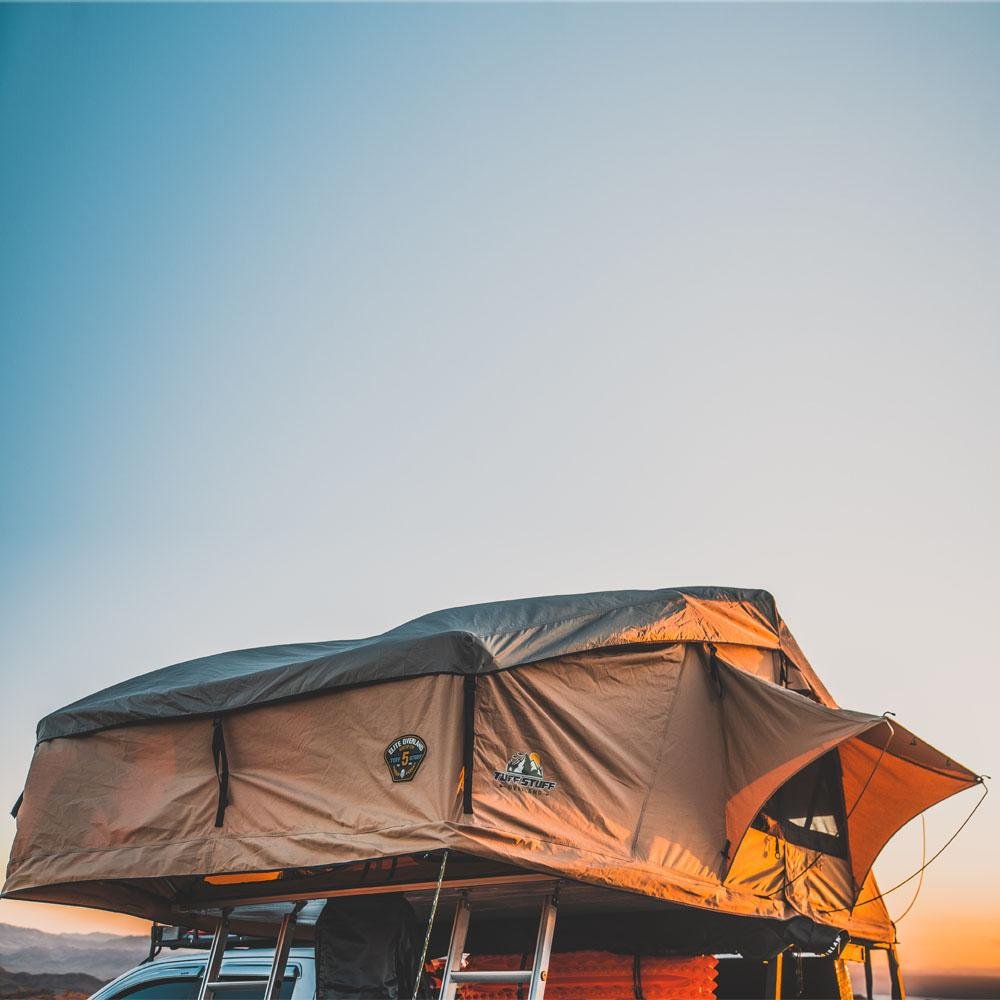

• Pull-out overhead veranda for shade and rain protection at the doors

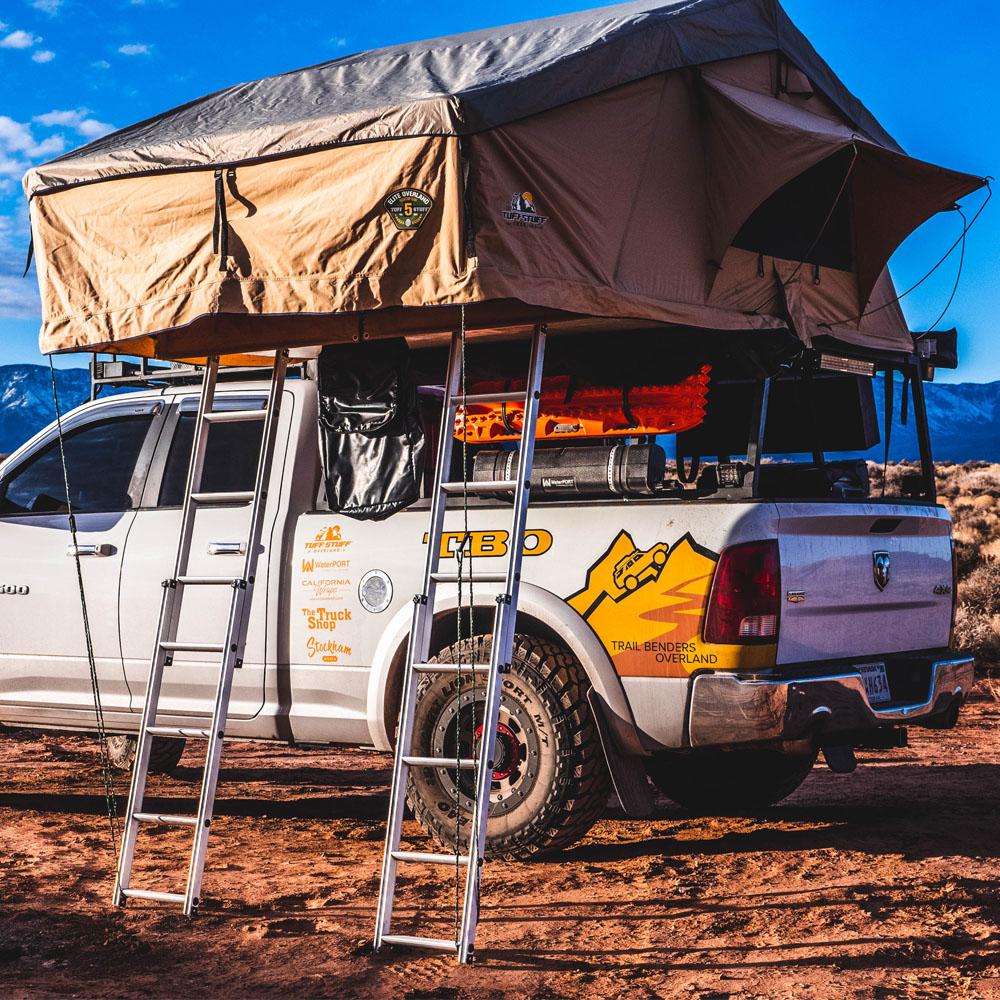

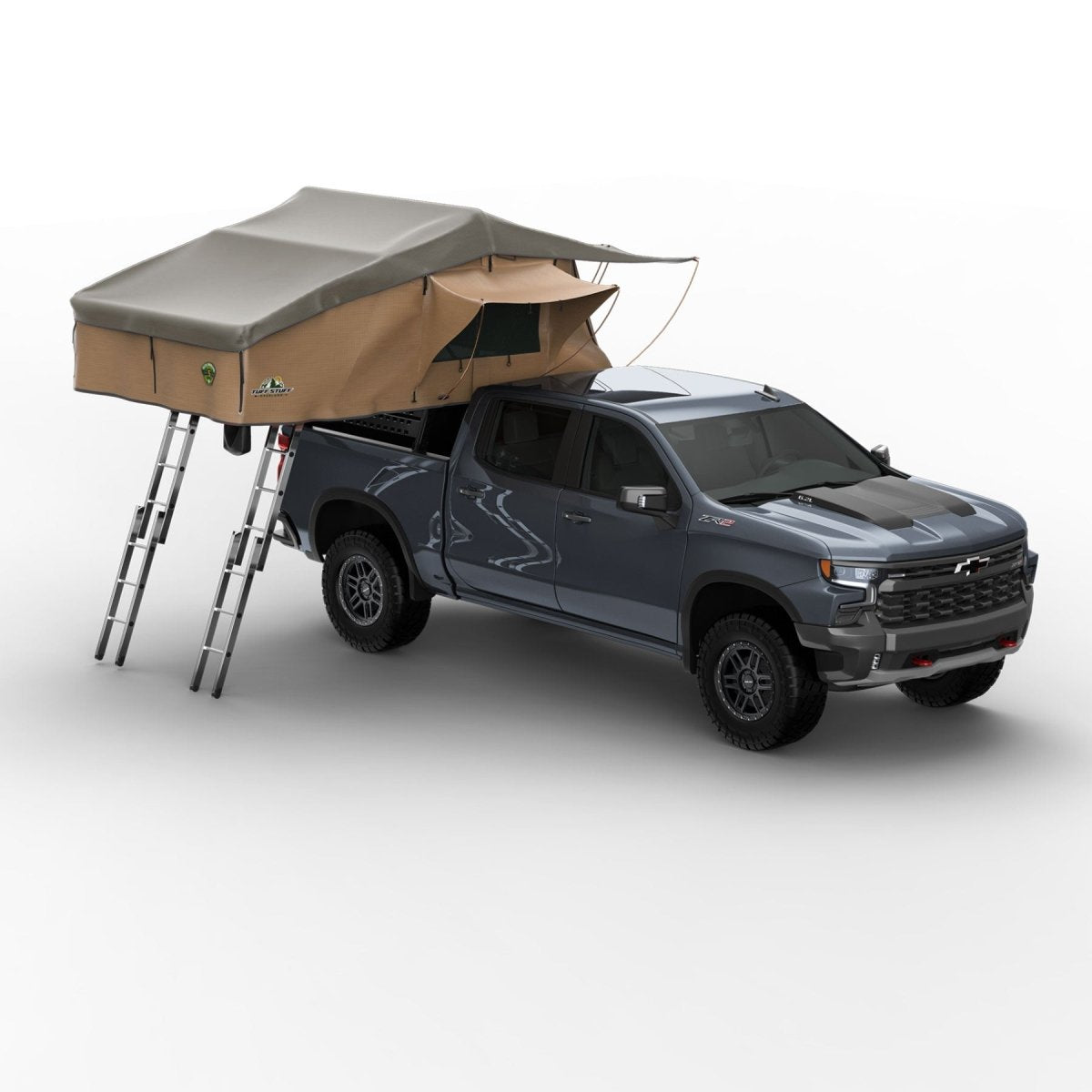

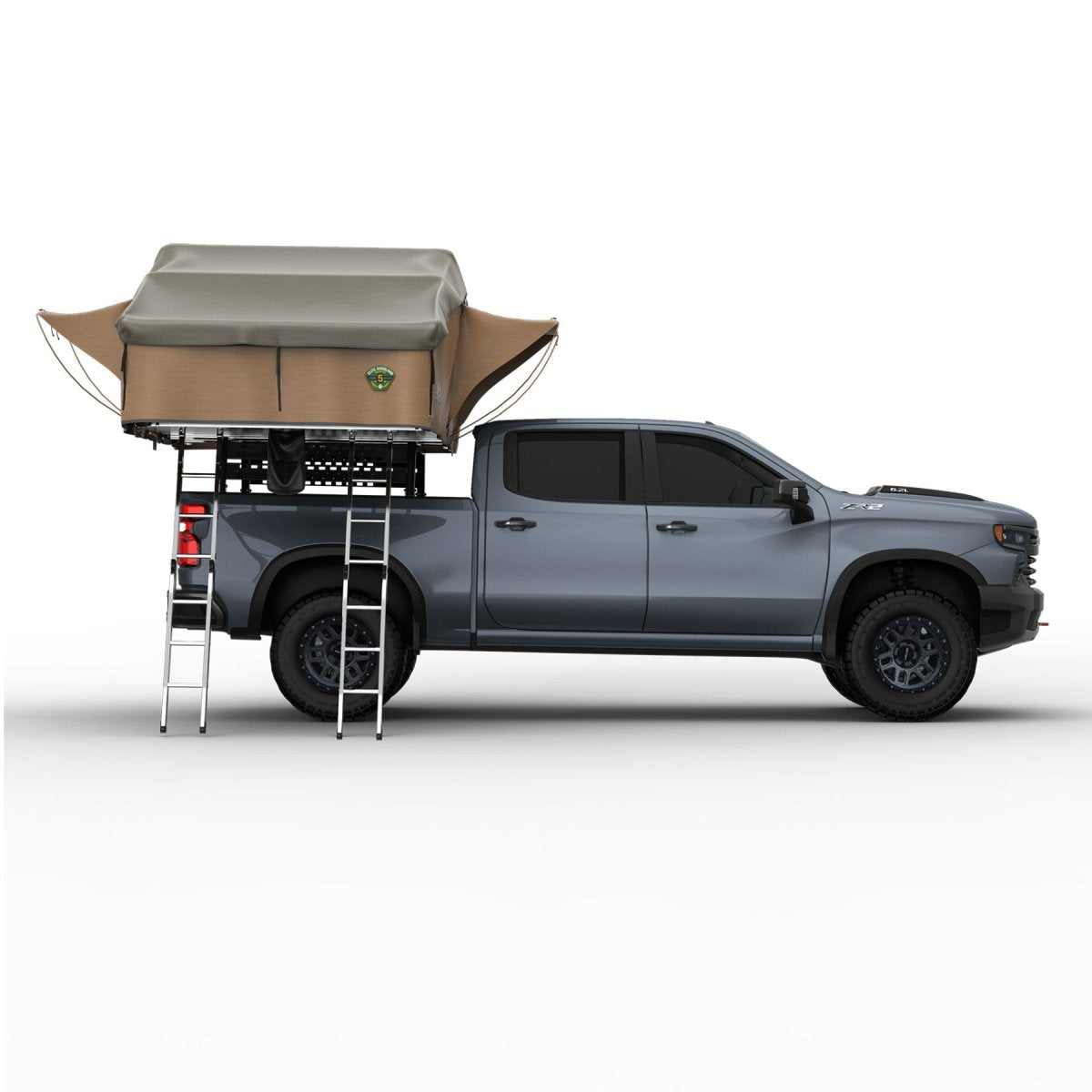

• Flexible mounting: unfolds from either side of the vehicle (side or rear)
• All-aluminum construction: frame, ladders and roof rack mounts
• Heavy-duty YKK zippers and a black 1000D PVC driving cover
• Complete install kit: all hardware and tools included

Specifications

• Actual weight: 194 lbs
• Weight capacity: 800 lbs
• Folded (closed): 79" L x 48" W x 16" H
• Opened: 79" x 96" x 52" H
• Open with overhang: 132" x 79" x 52" H
• Distance between mounting rails: 32"
• Mattress footprint: 78" x 96", 2.75" thick
• Windows: 6 including the doors, "no-see-um" mosquito mesh with inner/outer covers for cold or wet weather
• Annex room: 113" x 90", 420D Oxford walls and 1000D PVC floor
• Base: welded aluminum 2" frame with aluminum sheets top and bottom, insulated between joists
• Internal frame: 1" diameter aluminum poles
• Tent material: 280G cotton/poly rip-stop, polyurethane-impregnated
• Rain fly: 420D Oxford, polyurethane coated
• Driving cover: black 1000D PVC, heavy-duty YKK zippers
• Season: 4-season
• Color: Tan
• Warranty: 1 year against manufacturing defects
• SKU: TS-RTT-ANX-ELT

What's Included

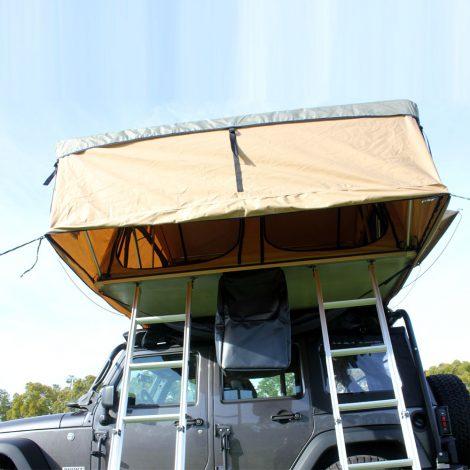

• Roof top tent with rain fly and 2 entry doors

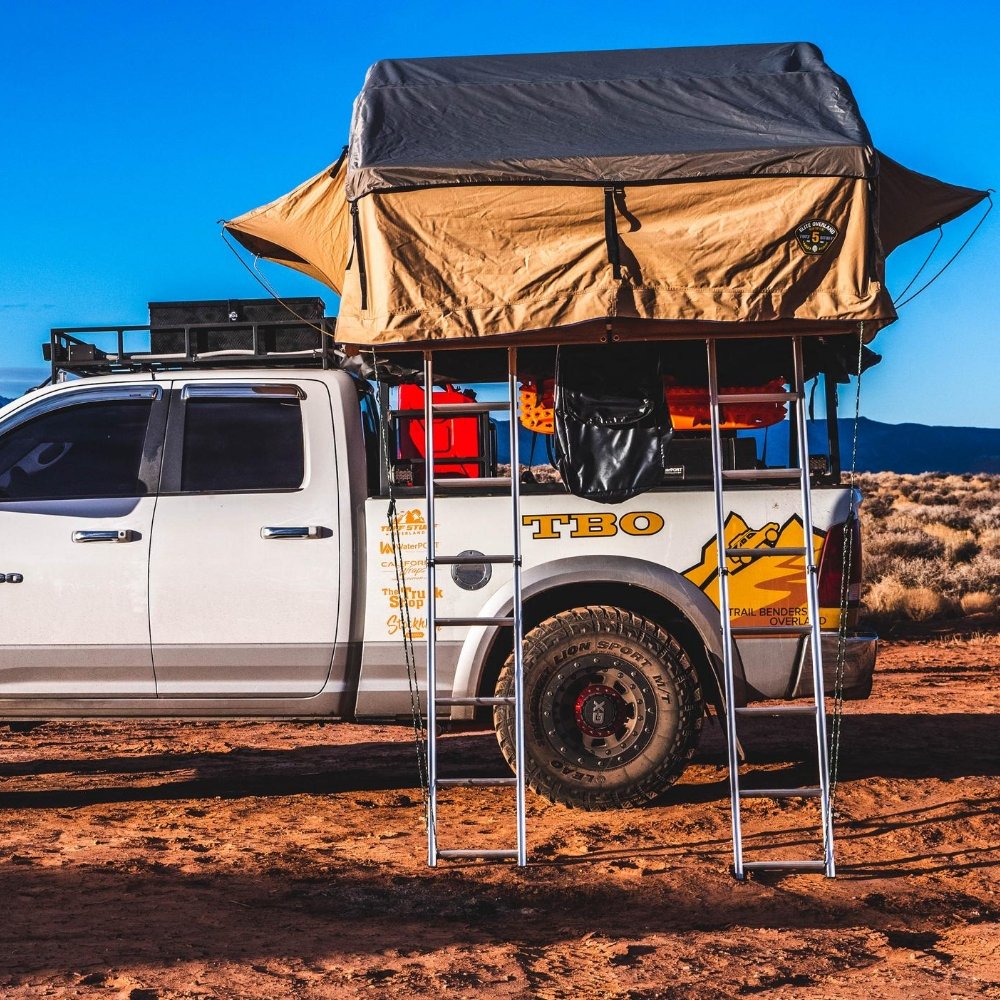

• 2 sliding aluminum ladders
• Annex room with floor (spikes included)
• 2.75" mattress with washable cover

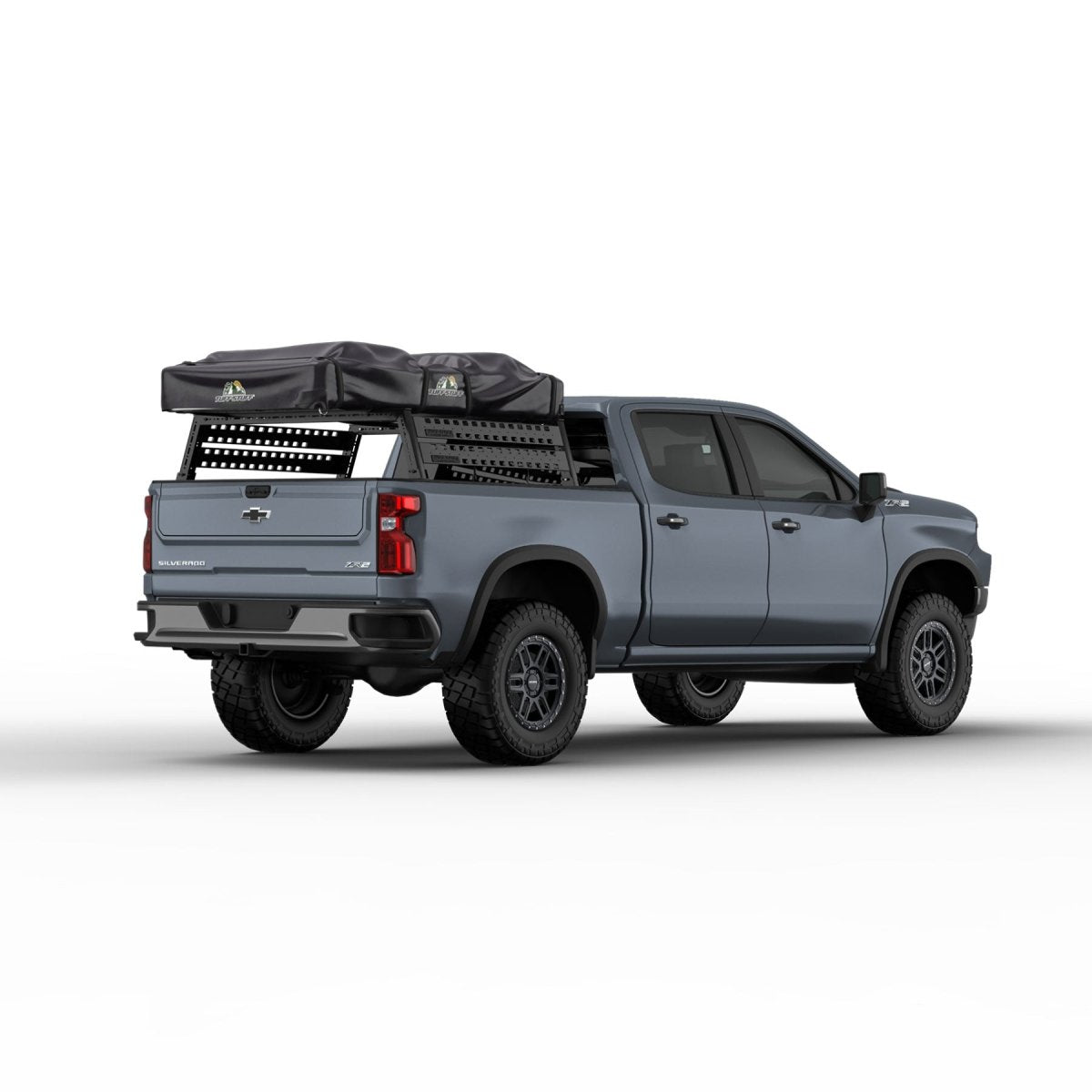

• Black PVC driving cover
• Shoe bags that slide into the tent rail for outdoor storage
• Under-tent storage hammock (mounts inside or outside the tent)
• All installation hardware and tools

Installation

• Install time is about 1-2 hours with 2 people. Detailed instructions are included.
• The annex room zips on after the tent has been installed.

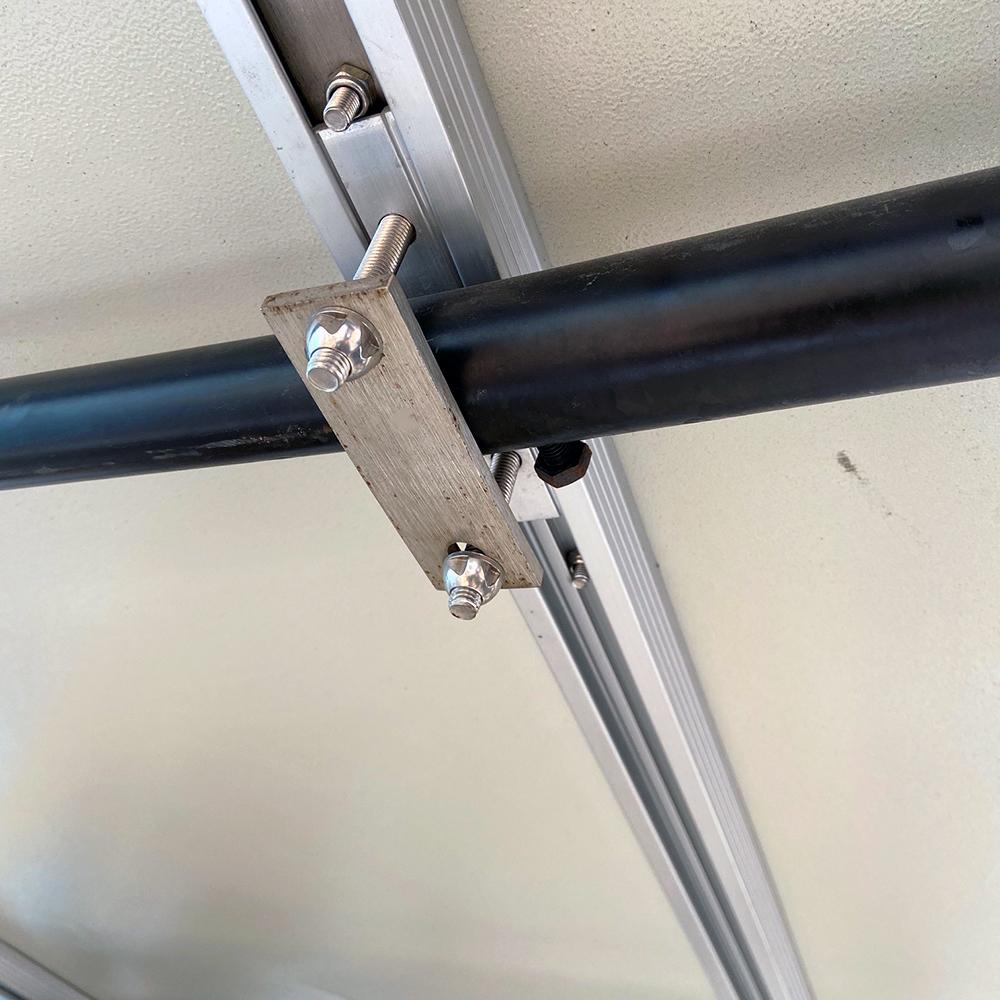

• The custom extruded aluminum channel system mounts to most roof racks. Tent mounts slide in the lower rail to fit crossbars with a spread of up to 52"; for optimal support, crossbars should be no more than 45" apart.

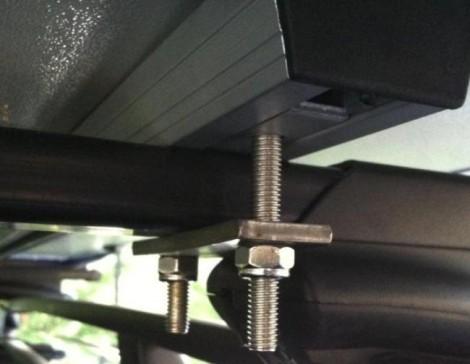

• The included brackets accept crossbars up to 3.25" wide. Wider crossbars require different brackets.
• Ideal mounting height is 76"-78" above the ground so the ladders extend fully and the annex reaches the ground.
• A roof rack or base for the tent to bolt to is required and not included. Please don't fabricate mounting rails before you receive your tent.

FAQ

Will this tent fit my vehicle?
Roof top tents are not vehicle-specific. Your vehicle needs a stable roof rack that can support the weight of the tent plus the people inside. Heavy-duty crossbars are required, and you should confirm your factory rail system can hold the load. Always refer to your vehicle manual.

How many people can it sleep?
Comfortably 4-5 adults. Small children can sleep between adults or in the included annex room.

Is it easy to open and close?
It is easier than most soft shell tents on the market, though slower than a hard shell. After a little practice, setup takes about 10-15 minutes, mostly spent placing the window rods for the overhangs.

Can it open from either side of the vehicle?

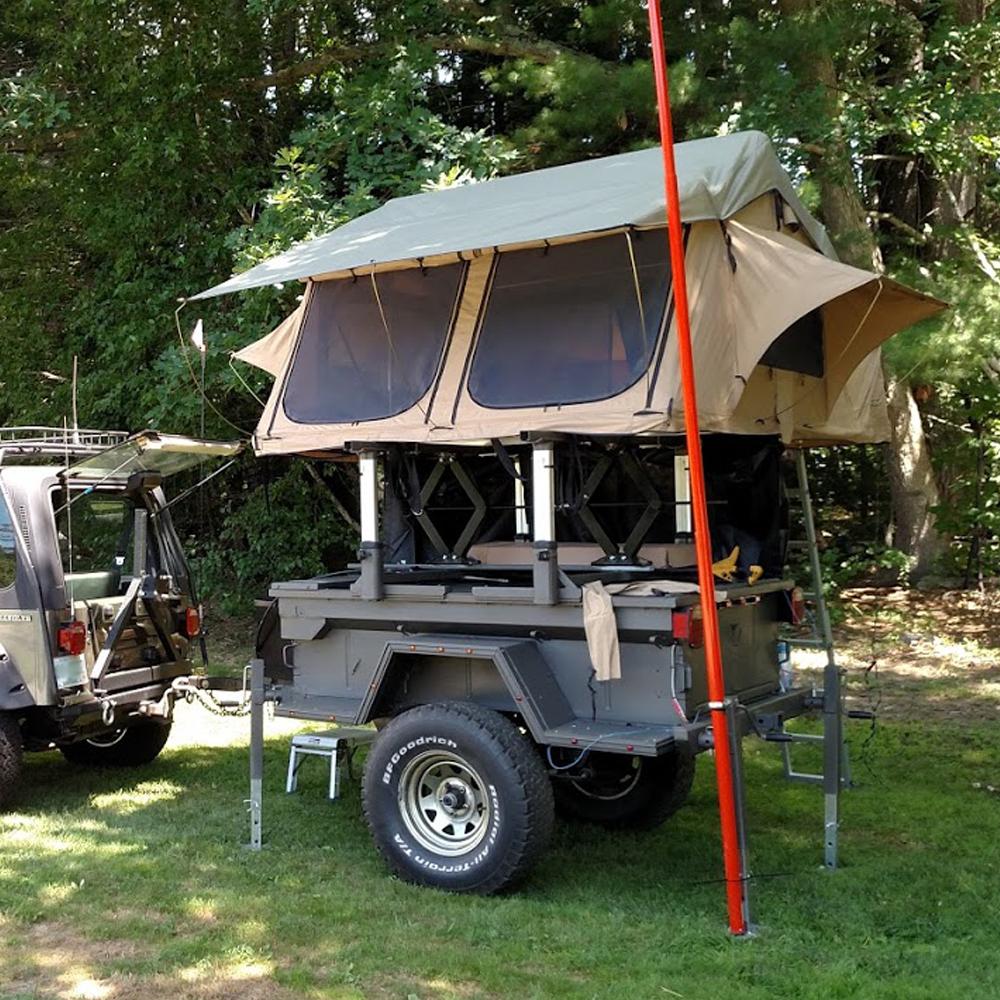

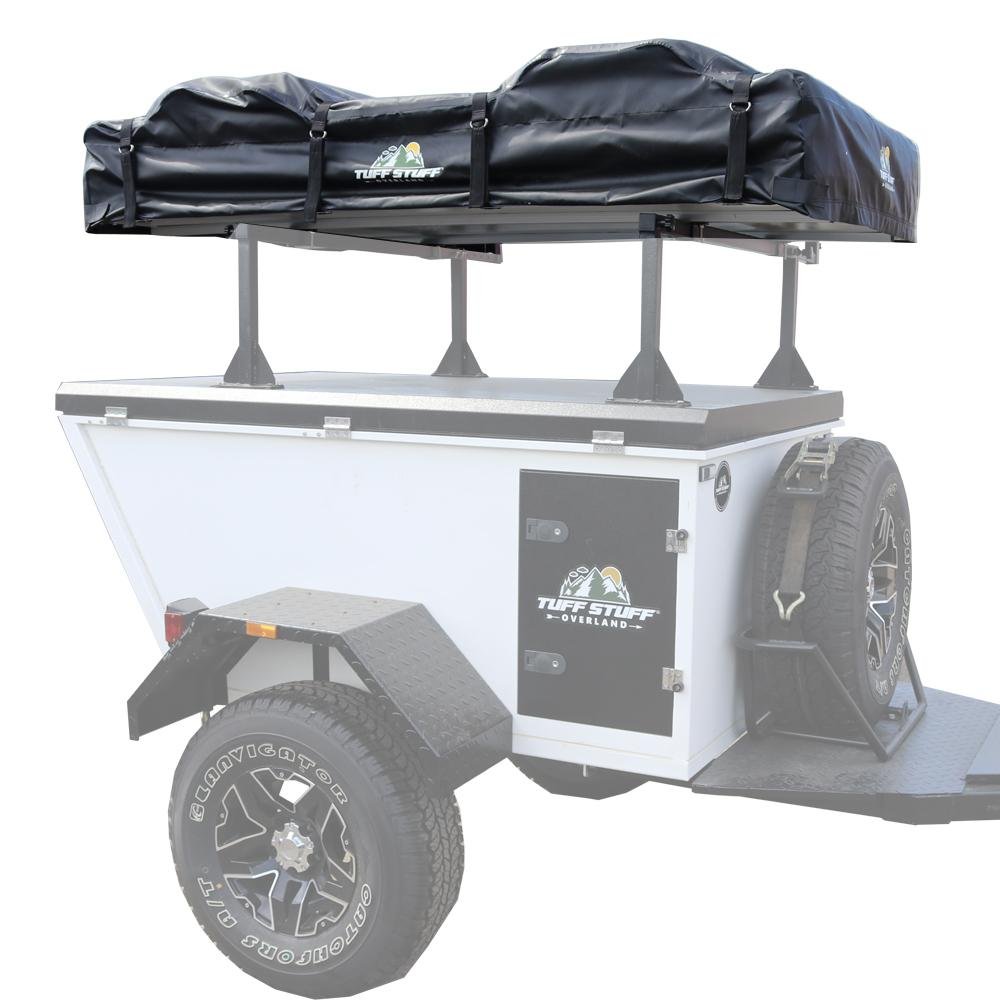

Yes, it can fold open from the left or right side of the vehicle or trailer.

Does it hold up in wind and rain?
Yes. The tent is waterproof and comes with a rain fly for long rainy days. When secured correctly it holds up to high winds.

Why is there moisture inside on cold nights?
In cold weather, the temperature difference between inside and outside causes condensation on the walls and floor. An anti-condensation mat and keeping the vents open help a lot.

Can I wash the mattress cover?
Yes, the cover is removable and washable.

Is all installation hardware included?
Yes, all hardware and wrenches are included. You need a roof rack ready for installation, so always check the weight capacity of your rack and vehicle.

Do I need to air out the tent after camping?
Yes. Air it out and let it dry after every trip to prevent mold and mildew.

Can I take it through a car wash?
No. Automatic car washes can damage the tent or tear it from the vehicle.

Shipping

This tent ships by LTL truck freight. The carrier will contact you to schedule delivery, and residential deliveries are made curbside. Please inspect the package for damage before signing.

Before You Buy

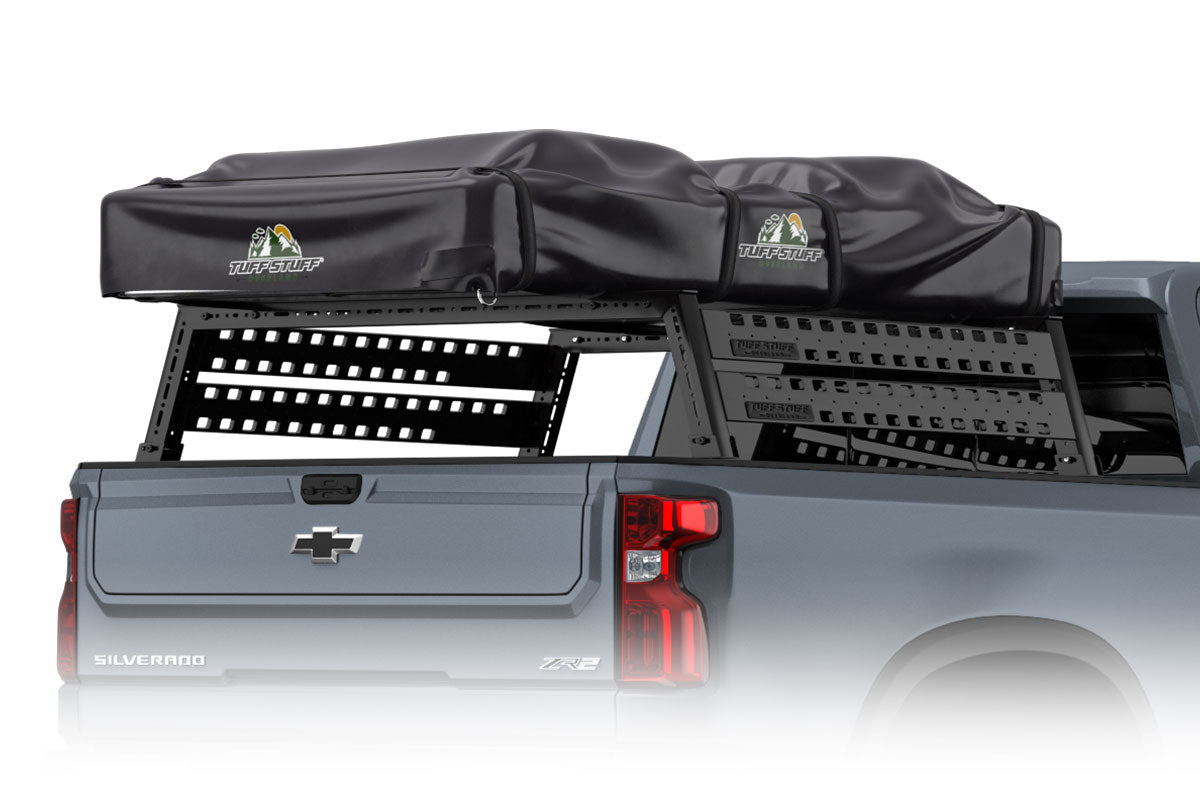

Check your vehicle's maximum roof load rating and the load limit of your roof rack or bed rack, especially for off-road use. Not sure it fits your rig? Contact our team before ordering.
